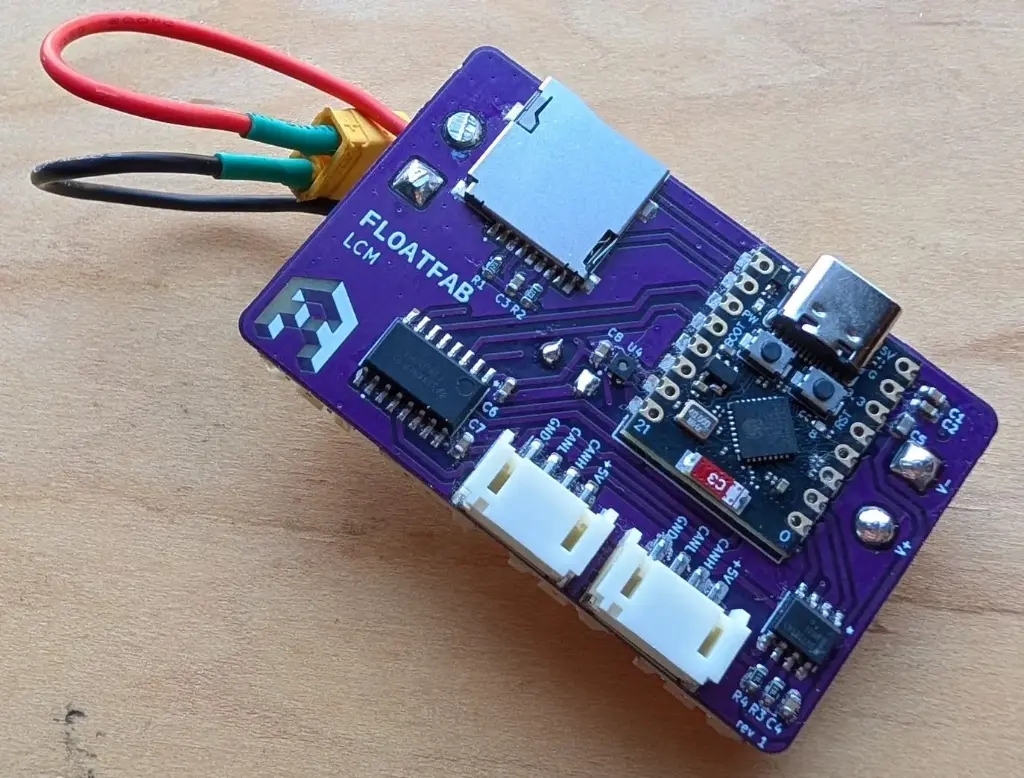

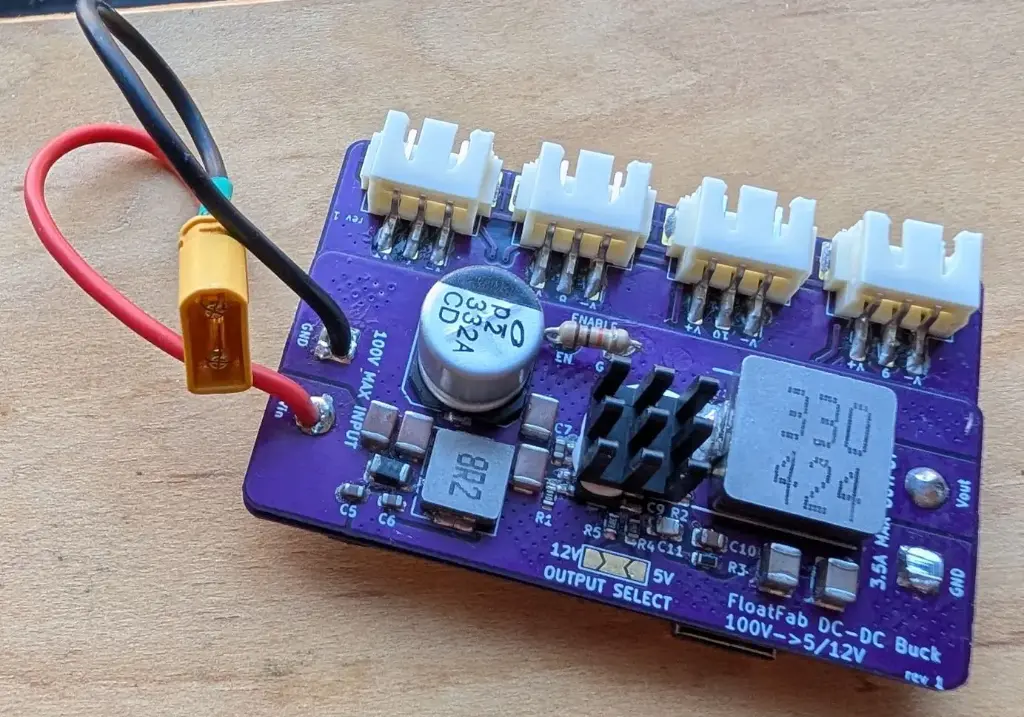

FloatFab LCM & Buck

Light controller module with attached buck for your PEV
Powered by an ESP32-C3 Supermini running Syler's amazing Float Accessories package.

Features:
- (4) 3 pin JST XH Light Output Channels
- (2) JST PH CAN connectors allowing pass through for adding BMS
- 5V or 12V lighting compatible

Anticipated features pending future software updates:
- Temperature & Humidity sensor
- Micro SD card logging

Size: 40 x 60 x 18 mm with FF Buck Attached

Printed cover included for mounting, send a message with order for any JST connections you would like included at no extra charge.

PCB made and assembled in the US
